DM_CorrMatch: a semi-supervised semantic segmentation framework for rapeseed flower coverage estimation using UAV imagery

Abstract

Rapeseed (Brassica napus L.) inflorescence coverage is a crucial phenotypic parameter for assessing crop growth and estimating yield. Accurate crop cover assessment is typically performed using Unmanned Aerial Vehicles (UAVs) in combination with semantic segmentation methods. However, the irregular and variable morphology of rapeseed inflorescences presents significant challenges in segmentation. To address these challenges, advanced methods that can improve segmentation accuracy, particularly under limited data conditions, are needed. In this study, we propose a cost-effective and high-throughput approach using a semi-supervised learning framework, DM_CorrMatch. This method enhances input images through strong and weak data augmentation techniques, while leveraging the Denoising Diffusion Probabilistic Model (DDPM) to generate additional samples in data-scarce scenarios. We propose an automatic update strategy for labeled data to dilute the proportion of erroneous labels in manual segmentation. Furthermore, a novel network architecture, Mamba-Deeplabv3+, is proposed, combining the strengths of Mamba and Convolutional Neural Networks (CNNs) for both global and local feature extraction. This architecture effectively captures key inflorescence features, even under varying poses, while reducing the influence of complex backgrounds. The proposed method is validated on the Rapeseed Flower Segmentation Dataset (RFSD), which consists of 720 UAV images from the Yangluo experimental station of the Oil Crops Research Institute of the Chinese Academy of Agricultural Sciences (CAAS). The experimental results showed that our method outperforms four traditional segmentation methods and eleven deep learning methods, achieving an Intersection over Union (IoU) of 0.886, Precision of 0.942, and Recall of 0.940. The proposed semi-supervised learning-based method, combined with the Mamba-Deeplabv3+ architecture, demonstrates superior performance in accurately segmenting rapeseed inflorescences under challenging conditions. Our approach effectively handles complex backgrounds and various poses of inflorescences, providing a reliable tool for rapeseed flower cover estimation. This method can aid in the development of high-yield cultivars and improve crop monitoring through UAV-based technologies.

Introduction

In 2023, China’s consumption of edible vegetable oil reached 39.08 million tons, of which domestically produced vegetable oil accounting for approximately 10.515 million tons [1], with a self-sufficiency rate of only about 30%. This indicates a severe supply–demand gap. Rapeseed(Brassica napus L.), as the primary source of domestic vegetable oil, holds a significant strategic role in the national edible oil supply security. Given the limited land resources, increasing the yield per unit area is the only way to enhance oilseed production capacity. The cultivation of high-yielding rapeseed varieties has become an urgent issue for ensuring the security of domestic vegetable oil supply.

Crop phenotype refers to the physical, physiological, and biochemical traits observed during the crop growth. It provides essential technical support for breeding and precision management in crop production [2,3,4]. The flowering period of oilseed rapeseed can last up to 30 days, which comprises nearly one-quarter of the plant’s total growing period. This stage marks the critical transition from vegetative to reproductive growth [5]. Flowering time and duration are key agronomic traits closely linked to yield [6, 7]. The coverage of oilseed rapeseed flower clusters accurately reflects the growth conditions of various rapeseed varieties during different stages of the flowering period [8], which is a widely used phenotypic parameter to assess flower growth. Additionally, studies have shown that peak flowering in canola occurs when flower coverage reaches its maximum, demonstrating a strong correlation between flower coverage, and canola yield [9, 10]. Nevertheless, traditional field observations of canola flowering are time-consuming, labor-intensive, and subjective. Automatic, non-destructive and high-throughput methods to determine and analyze the flowering stage of rapeseed are crucial for improving rapeseed yield and breeding efficiency.

Studies have been paying close attention to the application of remote sensing technology in high-throughput flowering phenotypic analysis. For example, Fang et al.[11] developed an approach for remote estimation of vegetation fraction and flower fraction by a multispectral system mounted on unmanned aerial vehicle (UAV). Wan et al. [12] combined vegetation indices (VIs) extracted from RGB and multispectral images to estimating flower number in oilseed rapeseed. After that, an enhanced area yellowness index (EAYI) is developed based on Moderate Resolution Imaging Spectroradiometer (MODIS) time series data for mapping rapeseed flowers [13]. Zhang et al. [14] investigated the application of vegetation indices in estimating canola flower numbers. Even more, a new normalized difference yellow vegetation index (NDYVI) is proposed to monitor yellowing morphologies such as flowers, based on GF- 6 images [15]. This approach leverages the spectral reflectance features of crops exhibiting yellowing. The aforementioned methods, leveraging spectral information of canopys, has achieved promising results in the estimation of crop canopy coverage. However, modern large-scale breeding programs typically encompass thousands of small plots, distributed across various breeding environments. The canopy phenotype needs to be distinguished at a fine granularity. Spatial resolution is a challenge for multispectral and satellite imaging, especially quantity acquisition of flowers in small breeding plot.

In recent years, remote sensing technology with RGB sensor has seen widespread application in agriculture, enabling the collection of crop information across different spatial and temporal scale [16,17,18,19]. Zhang et al. [20] proposed two lightweight neural network architectures, LW-Segnet and LW-Unet, for high-precision rice seedling segmentation. Li et al.[21] proposed a hybrid attention and transfer learning optimized semantic segmentation model for accurate disease severity estimation in field conditions using leaf images. Zhang et al. [22] introduced a Transformer-based GANet-Mask algorithm to get the grassland fractional vegetation cover. Chen et al. [23] found that deep learning-based semantic segmentation not only streamlines feature extraction through trainable operators but also improves segmentation accuracy for complex high-resolution UAV imagery. Scholars transform the phenotypic analysis problem into a semantic segmentation task, which has been demonstrated to be highly effective.

However, deep learning methods generally require large-scale, pixel-wise labeled datasets [24], which consist of numerous annotated images. Compared to image classification and object detection tasks [25, 26], accurately labeling datasets for semantic segmentation is more expensive and time-consuming. To solve this problem, Gao et al. [27] created a simulated-to-realistic dataset, and found that a training set of 9600 images combined with only 60 real images achieved the same segmentation accuracy as 2400 real images. The utilization of synthetic images has demonstrated potential as a promising strategy for augmenting the training dataset. But this cross-spatial-resolution model was specifically designed for field rice semantic segmentation.

Semi-supervised learning can leverage a limited amount of annotated data alongside a vast pool of unannotated data to train accurate segmentation algorithms. This approach not only alleviates the burden of manual annotation but also capitalizes on the abundant unlabeled data to enhance the precision of segmentation. Semi-supervised learning approaches can be categorized into self-training strategies that generate pseudo-labels and consistency-based learning strategies predicated on the smoothness assumption. The self-training strategy initially employs labeled data to train a network, which then produces a series of pseudo-labels[28, 29]. These pseudo-labels are subsequently merged with the original dataset, and the model is retrained until convergence. However, the success of self-training strategies is highly contingent upon the performance of the initial classifier, and they often necessitate multiple iterations of training, which can be particularly costly for large-volume images.

Nowadays, consistency regularization is widely applied in semi-supervised semantic segmentation tasks [30, 31]. The mean teacher method, which is based on consistency learning, is a more prevalent semi-supervised learning strategy. It introduces different perturbations to both labeled and unlabeled data, enforcing consistency constraints on the model’s outputs after perturbation to assist in optimizing the network and enhancing its robustness and generalizability [32, 33]. Nevertheless, within consistency-based semi-supervised methods, there exists an unreliable prediction region in the student network’s output for unlabeled data, which can lead to erroneous consistency guidance. Implementing meaningful consistency constraints between teacher and student networks has remained a challenging issue. Recent methods, such as FixMatch [34] and Unimatch [35], combine these two approaches. They apply strong perturbations to unlabeled images while leveraging pseudo-supervision from predictions on weakly perturbed images, using a high confidence threshold to filter pseudo-labels for training.

The rapeseed flower clusters exhibit distinct yellow characteristics, thus allowing the coverage of flower clusters to be transformed into an image segmentation task. But rapeseed is a high-density planting crop. The segmentation of rapeseed inflorescences presents notable challenges within the context of natural environments, as captured by Unmanned Aerial Vehicle-Red Green Blue (UAV-RGB) imagery. The challenges are as follows: The irregular and complex morphology of rapeseed inflorescences, further complicated by blurred boundaries, poses significant difficulties for accurate manual labeling and prediction. Additionally, the substantial variation in the condition, size, and color of rapeseed inflorescences across different growth stages complicates feature extraction for diverse periods and morphologies.

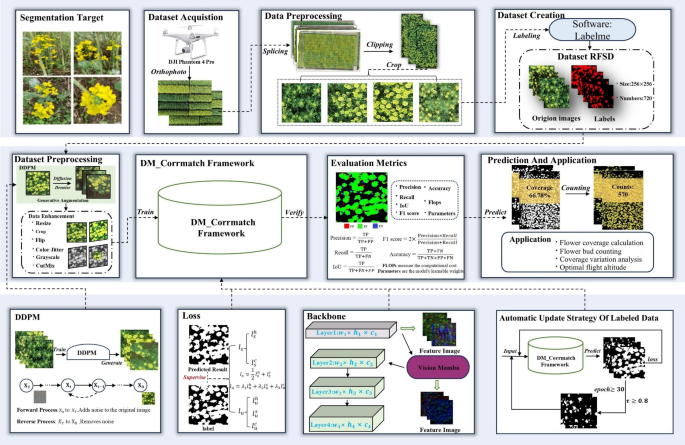

Fig. 1

General flowchart of the experiment

To address these challenges, we propose a novel semi-supervised segmentation method for rapeseed flower coverage estimation that differs from traditional approaches. Our method requires diverse training data, leverages a network with enhanced feature extraction capabilities, and introduces an innovative pseudo-labeling strategy to improve segmentation accuracy.

Our main contributions can be summarized as follows:

• (1) To alleviate the burden of manual annotation, we propose a semi-supervised semantic segmentation framework named DM_CorrMatch, which is designed with an innovative labeling update and an alternative method for generating samples based on the Denoising Diffusion Probabilistic (DDPM) model.

• (2) To enhance the network’s sensitivity to salient visual information, we combine the strengths of Convolutional Neural Networks (CNNs) and Visual Mamba, integrating low-level detail information and high-level semantic information through a cascaded feature fusion approach.

• (3) To validate the effectiveness of the proposed method, we establish a Rapeseed Flower Segmentation Dataset (RFSD) consisting of 720 high-definition UAV images and their corresponding labels, spanning multiple stages of the flowering stage.

• (4) We explore the application of coverage in oilseed rapeseed breeding and discussed the relationship between the accuracy of the proposed model and the flight altitude of the UAV.

Materials and methods

Overall process

The overall process presented in this paper includes data collection, data processing, dataset creation, model training, model prediction, and model application. As shown in Fig. 1, a UAV equipped with an RGB camera is used to capture image data of the entire field. Along with this, Agisoft PhotoScan is employed for image stitching. Individual plot images are then cropped using Adobe Photoshop to a fixed size of 256$\times$256 pixels before being labeled using the Labelme software. This process results in the creation of the Rapeseed Flower Segmentation Dataset (RFSD), which includes both original canola images and corresponding semantic labels.

To enhance model performance, the labeled dataset was augmented using DDPM-based generative augmentation alongside various traditional augmentation techniques. The proposed DM_CorrMatch model was then trained on this enhanced dataset and subsequently applied to calculate rapeseed flower coverage, capturing the coverage variation of different rapeseed varieties across various flowering stages. In addition, we performed flower bud counting based on the segmentation results to further analyze flowering trends.

Furthermore, we assessed the robustness of the proposed model by evaluating its performance under different GSD conditions, demonstrating its stability and effectiveness in varying UAV flight altitudes.

Fig. 2

The collection site and segmentation target. a Data collection site. b Experimental field. c Different rapeseed flower corresponding to early flowering, full flowering, and late flowering stages at different periods

Data acquisition

The data used in this experiment was collected from the Yangluo experimental station of the Oil Crops Research Institute of the Chinese Academy of Agricultural Sciences (CAAS), located in Xinzhou District, Wuhan City, Hubei Province (30°$42^\prime$E, 14°$30^\prime$N) at an altitude of approximately 24 ms. As shown in Fig. 2a, b, the site has a subtropical monsoon climate, and oilseed rapeseed was planted in field plots, with plot sizes of 8 m² (2 m $\times$ 4 m) and 6 m² (2 m $\times$ 3 m), both of which were used in this study. Winter oilseed rapeseed, planted in late September and harvested the following May, was selected as the experimental crop. Data collection occurred between February and May in both 2021 (for model training) and 2022 (for model robustness testing).

The data collection environment is illustrated in Fig. 3. Considering that variations in lighting and visual features under different temperature conditions can significantly influence the model’s capability to accurately segment rapeseed inflorescences, we recorded the dates of data acquisition and corresponding temperature conditions. This information will facilitate a more refined data filtering process in subsequent analysis.

The UAV used for data acquisition was the DJI Phantom 4 Pro V2.0, equipped with a 20.1 MP camera, capturing images at a resolution of 5472$\times$3648 pixels. An automatic flight mode was employed for aerial photography, with the heading and side overlap rates set at 75%. The UAV flew at an altitude of 10 m, capturing images at equidistant intervals at a speed of 1.9 m/s, completing data acquisition for the study area within approximately 30 min. After that, orthophoto images of the field was stitched by Photoscan software.

Figure 3 illustrates the growth stages of rapeseed within the same plot across different time periods, arranged sequentially from left to right and top to bottom. From the 2c, we can see that the size and color of rapeseed flower buds vary significantly across different growth stages. In addition to this, the background of the inflorescence also changes considerably, with green leaves gradually falling off, and in the later stages, distinct pods can also be observed, which increases the difficulty of precise segmentation.

Fig. 3

Rapeseed images collected by drones along with the corresponding environments and dates

Fig. 4

DM_CorrMatch framework Workflow. a Overall workflow of the DM_CorrMatch framework. b Generative mechanism of the Diffusion Model (DDPM). c Detailed workflow of the Mamba-DeepLabV3+ network

Dataset construction

To experiment on the proposed method, Rapeseed Flower Segmentation Dataset (RFSD) was built for the deep learning segmentation network. We cropped the orthophoto image into individual plots based on the actual ground dimensions using the Agisoft PhotoScan software. Then, the plot images were labeled using the Labelme tool, and the corresponding JSON files were converted into mask images for semantic segmentation. For enhanced training efficiency, we croped the labeled plot images to 256$\times$256 pixels. As a result of this processing, we obtained the Rapeseed Flower Segmentation Dataset (RFSD), containing 720 images and their corresponding labels.

DM_CorrMatch network flow

Plants represent a self-regulating system, and when observed via an unmanned aerial vehicle (UAV), the canopy inflorescences exhibit a spectrum of colors and morphologies, complicated by substantial occlusion and interference, which poses a formidable challenge for precise segmentation. Supervised deep learning segmentation techniques have demonstrated potential to solve the tough task. However, the requirement for extensive pixel-level annotations incurs considerable labeling expenses. The inflorescence possesses unique color attributes, and integrating these with the intrinsic characteristics of the crop alongside strengths of data-driven methodologies represents an emerging research direction.

The CorrMatch [36] achieves good results even with a small amount of labeled data. It is a semi-supervised learning method that leverages unlabeled data through consistency regularization and dual-label propagation strategies, achieving state-of-the-art segmentation performance on the Pascal VOC 2012 and Cityscapes datasets. However, for crop segmentation, the precision of manual annotations is suboptimal. The model demands enhanced feature extraction capabilities to accurately delineate fine details, including blurred edges, obscured targets, and small targets set against complex backgrounds. Furthermore, it need optimization and updating strategies for training data.

To address these challenges, DM_CorrMatch is introduced. The proposed method captures long-range dependencies, enhancing segmentation performance for small objects and fine details. Additionally, a data optimization strategy involving pseudo-labels and true labels has been developed. As illustrated in Fig. 4a, the upper-left section depicts the data augmentation process, where weak and strong data augmentation techniques are applied to enhance the input data. Besides this, the DDPM model generates a large amount of unlabeled data, providing diverse data for the experiments. The middle section of the figure presents the proposed Mamba-DeeplabV3+ network, which incorporates Vision Mamba blocks between the first and second layers of the ResNet101 feature extraction network, enhancing the ability to extract detail features. Below the Mamba-DeeplabV3+ network, the proposed automatic update strategy of labeled data is outlined. After completing custom training rounds, this strategy integrates the images with confidence scores exceeding the threshold $\tau$ from each round into the original labeled dataset for supervised loss computation, thereby optimizing the labeled dataset.

Data augmentation

In our experiments, we applied both weak and strong data augmentation techniques to enhance the input data. Weak augmentations included operations such as scaling, cropping, and flipping, while strong augmentations involved transformations like color jittering, grayscale conversion, and CutMix. All augmentation operations were applied randomly to ensure diverse variations in the training dataset.

In scenarios where unlabeled data is insufficient, this study proposed leveraging diffusion models to compensate for the shortage. This generative enhancement strategy integrates additional unlabeled data into the training process, which has been shown to significantly benefit semi-supervised learning [37]. Traditional Generative Adversarial Networks (GANs) are widely used for generating unlabeled images through adversarial training between a generator and a discriminator. While GANs can produce visually appealing results, they often face challenges such as training instability and mode collapse, which constrain the diversity and quality of the generated data.

To address these limitations, we adopted the Denoising Diffusion Probabilistic Model (DDPM) as our generative approach. Unlike GANs, DDPM leverages probabilistic modeling to progressively add and remove noise, enabling it to generate high-quality images through a robust backward diffusion process. This choice ensures a more stable and reliable generation of diverse samples, effectively complementing our augmentation strategies.

As illustrated in Fig. 4b, DDPM is a generative model that achieves image generation through two key processes: forward diffusion and reverse denoising. The forward diffusion process transforms real images into pure random noise by gradually adding Gaussian noise over multiple time steps. At each step, a small amount of noise is added, ultimately resulting in completely random noise. Subsequently, the reverse denoising process reconstructs the original image by progressively removing noise, starting from random noise. This iterative process generates samples that become increasingly closer to real data with each step, based on the output of the previous step.

Mamba-DeeplabV3 network

DeepLabV3+ implements multi-scale feature extraction through dilated convolution and spatial pyramid pooling modules, and integrates with an encoder-decoder structure. This approach effectively retains high-resolution details, making it suitable for processing complex scenes.

Although CNNs excel in local feature extraction, they have limitations in capturing global contextual information. Transformers, such as Vision Transformers (ViTs) and Swin Transformers, introduce the self-attention mechanism to enhance global feature modeling. However, this improvement often comes at the cost of significantly increased computational complexity and memory consumption. Mamba, a variant of structured state-space sequence models (SSM), offers a more efficient alternative by optimizing information retention and filtering through a reparameterization mechanism, thereby improving both modeling efficiency and performance. Unlike ViTs, which rely heavily on computationally expensive self-attention mechanisms to establish long-range dependencies, Mamba achieves a balance between local and global feature modeling through its unique bidirectional propagation strategy. Vision Mamba enables the model to efficiently integrate both local and global information by propagating feature representations in two directions(forward and backward) and subsequently merging the outputs. This bidirectional feature propagation effectively reduces the computational overhead typically associated with Transformer-based architectures while enhancing the model’s ability to capture fine-grained details and complex spatial dependencies.

Fig. 4c illustrates the integration of the Vision Mamba layer into the shallow residual block of ResNet101, strategically positioned between layer1 and layer2. Introducing the Vision Mamba layer at this early stage offers two primary advantages. First, placing it within the shallow residual block allows the model to enrich foundational features early on, which is crucial for tasks requiring precise segmentation of intricate structures, such as the detailed contours of canola flower petals. In contrast, ViTs typically emphasize deeper layers, which may result in the loss of fine-grained spatial information. Second, this early-stage enhancement ensures that deeper layers receive a richer feature set, improving the balance between local texture details and global contextual information.

The input image, represented as W$\times$H$\times$C (where W, H, and C denote the width, height, and channels, respectively), undergoes a series of convolutional operations, gradually reducing spatial resolution while increasing the depth of the feature maps. By the time the data reaches the Vision Mamba layer, it has been transformed into a 64$\times$64$\times$256 feature map. The Vision Mamba layer consists of bidirectional State Space Models (SSMs): a forward SSM and a backward SSM. Each SSM processes a 64$\times$64$\times$256 feature map, analyzing the sequential dependencies in the data to enhance contextual information. The bidirectional nature of this layer enables it to capture the relationships between local and global features in the image, akin to how temporal dynamics are handled in time-series data. After processing, the outputs from the forward and backward SSMs are concatenated, effectively doubling the feature dimensionality to 64$\times$64$\times$512. Subsequently, this enhanced feature map undergoes convolution to match the resolution required by subsequent layers, returning to 64$\times$64$\times$256.

Automatic update strategy of labeled data (AUL)

Obtaining high-quality segmentation labels for rapeseed flower data presents considerable challenges due to the intricate structure of the flowers and the labor-intensive nature of manual annotation. Moreover, the presence of inaccurate annotations within the original labeled dataset may adversely affect model performance. These challenges are particularly significant in semi-supervised learning tasks, where the quality of labeled data directly influences model accuracy.

In traditional semi-supervised segmentation methods like FixMatch and Mean Teacher, pseudo-labels are generated for unlabeled data, and these pseudo-labels are used to augment the labeled dataset during training. While both methods have shown success in improving segmentation performance, they rely heavily on the assumption that high-confidence pseudo-labels are accurate. This can lead to issues in the presence of noisy or low-quality annotations, as the model may amplify errors from incorrect pseudo-labels.

FixMatch uses a consistency-based approach, comparing strong and weak augmentations of unlabeled data to enforce consistency between predictions. Pseudo-labels are assigned to high-confidence predictions, assuming they are accurate. However, when the initial labeled dataset contains noisy annotations, errors can be propagated into the pseudo-labeled data, negatively affecting training.

Similarly, Mean Teacher generates pseudo-labels by using an exponential moving average of the model’s weights to ensure consistent predictions over time. While effective, it can still suffer from inaccurate initial labels, as errors in early pseudo-labels may accumulate, reducing label refinement effectiveness.

Given these challenges, our Automatic Update Strategy of Labeled Data (AUL) offers a more controlled and dynamic approach to address the issues associated with noisy labels.In our approach, pseudo-labels are generated for unlabeled data, and the label propagation process begins after a specified number of training epochs (T). From this point onward, pseudo-labels are filtered based on confidence scores, and only those with confidence exceeding a predefined threshold are incorporated into the labeled dataset. This dynamic update strategy ensures that only the most reliable pseudo-labels contribute to model training, effectively preventing the propagation of errors from noisy annotations while progressively enhancing model performance.

Loss function

The supervised loss($L_s$) is derived from both the labeled dataset $D_l$ and the subset of high-confidence data, which is iteratively updated throughout the training process. Specifically, the $L_s$ is a weighted loss function consisting of two components, the cross-entropy loss($L_s^h$) and the supervised correlation loss($L_s^c$). Equation (1) is expressed as follows:

$$\begin{aligned} L_s = \frac{1}{2} \left( L_s^h + L_s^c \right) \end{aligned}$$

(1)

where cross-entropy loss($L_s^h$) is used to measure the difference between model predictions and true labels to ensure the model’s ability of accurate classification. Supervised correlation($L_s^c$) helps the model understand the spatial structure in an image by capturing the similarity relationships between pixels.

Unlabeled loss defines three main loss functions, hard-supervised loss, soft-supervised loss, and correlation loss, which play a key role in improving the quality of pseudo-labeling and enhancing the utilization of unlabeled data. The hard supervision loss ($L_u^h$) employs a pixel-wise cross-entropy loss to achieve output consistency between strongly augmented and weakly augmented images in high-confidence regions. Equation (2) is expressed as follows:

$$\begin{aligned} L_u^h = \frac{1}{N} \sum _{i=1}^{N} l_c \left( F(x_i^s), F(x_i^w) \right) \odot M_i \end{aligned}$$

(2)

where $l_c$ represents the pixel-wise cross-entropy loss function, $M_i$ is a binary mask used to identify high-confidence regions within the strongly augmented image F($x_i^w$). F($x_i^s$) and F($x_i^w$) denote the predicted outputs of the weakly and strongly augmented images $x_i^s$ and $x_i^w$ after processing through the network respectively. The soft supervised loss($L_u^s$) considers the difference in logits outputs between the weakly and strongly augmented images and uses the Kullback–Leibler divergence to measure their similarity within high-confidence regions. Equation (3) is expressed as follows:

$$\begin{aligned} L_u^s = \frac{1}{N} \sum _{i=1}^{N} \text {KL} \left( \hat{F}(x_i^s), \hat{F}(x_i^w) \right) \odot M_i \end{aligned}$$

(3)

where KL is the Kullback–Leibler scatter, and $\hat{F}(x)$ denotes the logits output, $M_i$ is the mask of the high confidence region.

Correlation loss($L_u^c$) pixel propagation strategy is introduced, which combines the correlation map between features and propagates it into the pseudo-label generation to improve the accurate recognition of the same object region. The correlation loss formula (4) is:

$$\begin{aligned} L_u^c = \frac{1}{|N|} \sum _{i=1}^{N} \left( l_c \left( z_i^u, F(x_i^w) \right) \right) \odot M_i \end{aligned}$$

(4)

where $z_i^u$ is the pseudo-labeled representation after correlation map propagation. So the unsupervised loss formula (5) is:

$$\begin{aligned} L_u = \lambda _1 L_u^h + \lambda _2 L_u^s + \lambda _3 L_u^c \end{aligned}$$

(5)

The default setting $\lambda _1$, $\lambda _2$, $\lambda _3$ is $[0.5, 0.25, 0.25]$.

Evaluation indicators

The performance of the segmentation model is evaluated via Precision, Recall and Intersection over Union (IoU). Precision, which is the ratio of the number of true positive samples correctly identified to the total number of positive samples classified by the classifier. Recall, which is the ratio of the number of true positive samples correctly identified to the actual number of positive samples. F1 score is a harmonic mean of Precision and Recall, providing a balanced measure of model performance. Accuracy is the ratio of correctly predicted samples (both positive and negative) to the total number of samples, reflecting the overall correctness of the model. Intersection over Union (IoU), which measures the overlap between the predicted results and the ground truth by dividing their intersection by their union.

It is an indicator that combines precision and recall, and can well reflect the accuracy of the segmentation results. Therefore, this paper adopts IoU to evaluate the segmentation performance of the segmentation model. The IoU value ranges from 0 to 1, with higher values indicating better consistency between the predicted segmentation and the true segmentation.

They are calculated as follows:

$$\begin{aligned} \text {Precision}= & \frac{\text {TP}}{\text {TP} + \text {FP}} \end{aligned}$$

(6)

$$\begin{aligned} \text {Recall}= & \frac{\text {TP}}{\text {TP} + \text {FN}} \end{aligned}$$

(7)

$$\begin{aligned} \text {IoU}= & \frac{\text {TP}}{\text {TP} + \text {FN} + \text {FP}} \end{aligned}$$

(8)

$$\begin{aligned} \text {F1 score}= & 2 \times \frac{\text {Precision} \times \text {Recall}}{\text {Precision} + \text {Recall}} \end{aligned}$$

(9)

$$\begin{aligned} \text {Accuracy}= & \frac{\text {TP} + \text {TN}}{\text {TP} + \text {TN} + \text {FP} + \text {FN}} \end{aligned}$$

(10)

Fig. 5

Visualization of original and generated images from different flowering stages, with quality validation of the generated images using LPIPS, FID, and SSIM

where TP represents the true positives (the samples correctly predicted as positive), TN denotes the true negatives (the samples correctly predicted as negative), FP is the false positives (the samples incorrectly predicted as positive), and FN is the false negatives (the samples incorrectly predicted as negative).

To provide a comprehensive evaluation of the model’s performance, we incorporated the computational efficiency measures. FLOPs (Floating Point Operations) were used to quantify the computational cost of the model, providing an indication of the total number of arithmetic operations required during both training and inference. FLOPs represent the number of floating-point multiplications and additions performed, offering a measure of the computational burden. Additionally, the number of parameters was considered as a key indicator of the model’s complexity and memory consumption, reflecting the total count of learnable weights in the network. These additional metrics, FLOPs and parameters, allow for a more comprehensive evaluation, ensuring a balance between model accuracy and computational resource efficiency.

Ablation experiments

Data generation enhancements

In the context of semi-supervised semantic segmentation tasks, effectively utilizing unlabeled data is crucial for improving model performance. However, the quality and quantity of unlabeled data are both critical factors.

In this study, we first conducted an image quality evaluation experiment on the generated images to ensure their reliability for training. Following the training of the DDPM model using a dataset of 300 images spanning different flowering stages, we leveraged the trained model to generate a variety of images representing distinct flowering periods (as illustrated in Fig. 5). To assess the quality of the generated images, we employed three widely recognized image evaluation metrics: LPIPS, FID, and SSIM. The Learned Perceptual Image Patch Similarity (LPIPS) metric quantifies perceptual similarity between images, where lower values indicate higher perceptual similarity and, consequently, superior image quality. LPIPS values typically range from 0 to 1, with 0.35 to 0.46 observed in our experiments. The Frechet Inception Distance (FID) evaluates the distributional similarity between real and generated images, with lower values signifying that the generated images exhibit closer resemblance to real images in terms of content and style. FID scores generally range from 0 to infinity, where values below 10 indicate high-quality generation. In our case, the FID values range from 13.00 to 15.00, suggesting a reasonable similarity to real images. The Structural Similarity Index (SSIM) measures the structural similarity between images, with values approaching 1 reflecting stronger alignment with the structural features of real images. SSIM values fall within 0 to 1, where higher values indicate better image quality. Our generated images achieved SSIM values between 0.85 and 0.89, demonstrating strong structural consistency with real images.

As demonstrated by the boxplots in Fig. 5, the generated images exhibit satisfactory quality across various flowering stages. Collectively, these metrics validate the quality of the generated images, confirming their potential for use in subsequent training tasks.Having confirmed the quality of the generated images, we proceeded to investigate the importance of unlabeled data quantity in the experiment. Starting with an initial dataset of 30 labeled images and 300 unlabeled images, we expanded the unlabeled dataset using both real images and generated images, as shown in Table 1. When the number of unlabeled images reached 600, the precision, recall, and IoU obtained through real image expansion were 0.939, 0.936, and 0.884, respectively, while those achieved using generated images were 0.936, 0.932, and 0.882. When the amount of unlabeled data increased to 900, both methods of increasing labels improved the IoU accuracy by at least 1 percentage point. As the dataset continued to expand to 1500 images, performance gains leveled off.The above results indicate that the quantity of data involved in training is important.

Although the performance metrics for generated images were slightly lower than the actual images, the use of diffusion-generated images for training significantly reduced the time costs associated with data collection and processing. The diffusion model can rapidly produce diverse unlabeled images, providing an efficient and flexible solution for dataset expansion, especially in scenarios where actual data collection is challenging or costly. In this paper, we ultimately opted to expand the unlabeled dataset with diffusion-generated images and chose the 30/900 configuration to balance accuracy improvements and training efficiency.

Table 1 Comparison of the accuracy of different quantities of unlabeled data

Table 2 Comparison of ablation experiment accuracy

Table 3 Comparison of the accuracy of different kinds of base network

Table 4 Comparison of the accuracy of different kinds of Mamba

Base network selection

This paper employs Mamba-DeepLabv3+ as the base network and compares its performance against several widely used architectures, including UNet, SegNet, Deeplabv3+, HRNet, and SegFormer. As shown in Table 3, the DM_CorrMatch framework with the Mamba-DeepLabv3+ network achieves the highest scores across all five evaluation metrics: precision, recall, IoU, F1 score, and accuracy. Notably, Mamba-DeepLabv3+ attains an IoU of 0.886, outperforming Deeplabv3+ (0.856) and other baseline models, demonstrating its effectiveness in improving segmentation accuracy and detail preservation. In terms of computational efficiency, Mamba-DeepLabv3+ exhibits a FLOP value of 84.54 GFLOPS, which, while slightly higher than UNet (83.46 GFLOPS) and SegNet (79.67 GFLOPS), remains within a reasonable range given its superior segmentation performance. The improvements introduced by Mamba layers enhance feature extraction capabilities, enabling better multi-scale representation without significantly increasing computational costs.

These results confirm that integrating Mamba into the Deeplabv3+ framework effectively enhances segmentation accuracy while maintaining a favorable trade-off between performance and efficiency. In contrast, the transformer-based architectures, despite their promising potential, did not achieve the same level of segmentation accuracy and efficiency as Mamba-Deeplabv3+. This makes Mamba-Deeplabv3+ a more well-balanced and effective choice for high-precision segmentation tasks.

Experiment of automatic update strategy of labeled data (AUL)

Fig. 6

Probability Distribution Map of Rapeseed Images at Different Periods

Fig. 7

Average quality and quantity of pseudo-labels under different confidence thresholds

The training epoch at which the AUL operation begins plays a critical role in the model’s performance. As shown in Fig. 8, our model achieved high segmentation accuracy after 30 training epochs. Therefore, we initiated the AUL operation starting from the 30 th epoch (T= 30). In the AUL, the quality and quantity of pseudo-labels also have a significant impact on the experiment, making the selection of an appropriate confidence threshold crucial.

As shown in Fig. 6, the probability maps illustrate the segmentation results for rapeseed flowers at different flowering stages, predicted by a model trained for 30 epochs. To evaluate the reliability of these predictions, we computed the confidence score for each stage using the following formula:

$$\begin{aligned} \text {confidence} = \frac{1}{H \times W} \sum _{i=1}^{H} \sum _{j=1}^{W} \max (P(0 \mid i,j), P(1 \mid i,j)) \end{aligned}$$

(11)

where $H$ and $W$ represent the height and width of the image, and $P(0 \mid i,j)$ and $P(1 \mid i,j)$ denote the softmax probabilities for the two classes at pixel $(i,j)$. The results indicate that the confidence scores remain consistently high across different flowering stages, suggesting that the pseudo-labels are reliable.

To verify the reliability of the pseudo-labels used in this strategy, we conducted a preliminary evaluation by generating pseudo-labels using a model trained for 30 epochs on labeled data that was not included in the training process. The quality of these pseudo-labels was assessed by calculating their IoU with the corresponding ground truth labels. As shown in Fig. 7, we further explored different confidence thresholds to determine the optimal balance between pseudo-label quality and quantity. The results indicated that a confidence threshold of 0.8 provided the most effective trade-off, ensuring both reliable pseudo-labels and sufficient data expansion. Specifically, at this threshold($\tau$), the IoU of the selected pseudo-labels reached 0.91, while the number of pseudo-labels meeting this criterion amounted to 240, effectively balancing label quality and dataset expansion. This dynamic update strategy effectively enhances the model’s segmentation performance by improving the quality of labeled data while simultaneously expanding its diversity, thereby contributing to the model’s robustness across varying environmental conditions and rapeseed flowering stages.

Mamba module selection

This experiment demonstrates the superiority of Vision Mamba by integrating various Vision Mamba layers into the feature extraction network. As shown in Table 4, Vision Mamba has the best performance in terms of IoU, with a value of 0.886. That is because Vision Mamba enhances the understanding of both local and global features through the incorporation of a bidirectional state space model (SSM). This capability is especially beneficial in semi-supervised learning scenarios, where it significantly enhances the model’s robustness. Therefore, in the context of canola flower segmentation, Vision Mamba, with its bidirectional propagation characteristics, is more adept at handling complex spatial relationships, rendering it more suitable for semi-supervised semantic segmentation tasks.

Module ablation experiments

In this paper, we conduct an ablation study to evaluate the contribution of the Vision Mamba layer, the diffusion model, and the Automatic Update Strategy Of Labeled Data (AUL) in the DM_Corrmatch. We begin with the base network DeeplabV3+ and sequentially add Component Vision Mamba, the AUL and the diffusion model to create a series of variant models. Each variant is trained and evaluated on the same dataset to ensure consistency.

The results are summarized in Table 2. The introduction of the Mamba layer increases the model’s Precision to 0.923, Recall to 0.924, and IoU to 0.874. It indicates that the Mamba layer performs well in capturing detailed features, with a significant performance improvement, albeit with an increase in computational complexity and parameter count to 73.87 GFLOPs and 66.74 million, respectively. The AUL also improves the model’s performance metrics, with a Precision of 0.923, Recall of 0.922, and IoU of 0.872. It is worth noting that when these two parts work together, the evaluation metrics reach their highest. The combination of the Mamba layer and AUL strategy substantially improves the overall segmentation performance.

If it is a task with a limited samples, one can first increase the sample size through the diffusion model. From the Table 2, we can see that adding the Diffusion Module for data augmentation alone also achieves the goal of improving model performance, but at the cost of an increased model complexity and computational load. When combining the Mamba layer and the AUL strategy simultaneously, the model achieves better performance metrics, with an IoU of 0.886. However, this comes at the cost of computational complexity peaking at 84.54 GFLOPs, and the parameter count reaching its maximum at 76.78 million.

Table 5 Comparison of different network evaluation indicators

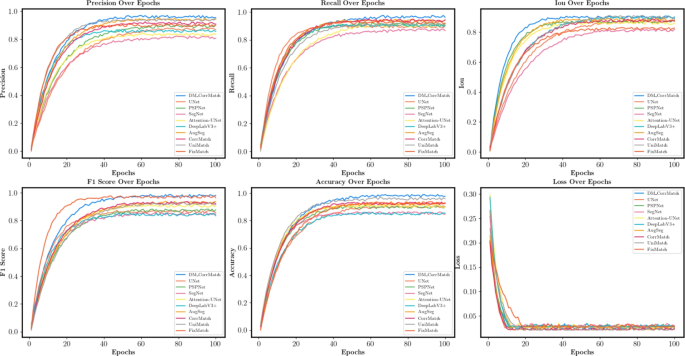

Fig. 8

Precision, Recall, IoU and F1 Score, Accuracy training process precision curves

Fig. 9

Visual segmentation of different networks corresponding to different flowering periods

Comparison with advanced methods

In this paper, four traditional methods and twelve semantic segmentation methods are used for tests. The traditional methods include the Otsu method, H-channel segmentation in HSV color space, k-means clustering in Lab color space, and color feature-based segmentation techniques. The Otsu method, proposed in 1979, determines the optimal segmentation threshold by maximizing inter-class variance, thereby binarizing the image. H-channel segmentation in HSV color space performs threshold segmentation based on the hue channel. K-means clustering in Lab color space first converts the image to Lab space and then applies the k-means algorithm for clustering. The color feature-based segmentation method first converts the RGB image to Lab and HSV spaces, and extracts nine color features for each pixel. And then these features are used to classify the pixels in the canola region as the foreground, with the remaining pixels as background, thereby implementing supervised image segmentation.

The twelve semantic segmentation methods include seven fully supervised and four semi-supervised methods. The fully supervised networks include UNet, PSPNet, SegNet, Attention-UNet, DeepLabv3+, SegFoemer, and Swin-Unet. UNet is a classical encoder-decoder architecture that fuses feature maps from the encoder and decoder through skip connections, preserving high-resolution information. PSPNet enhances the global contextual information by introducing a Pyramid Pooling Module, which aggregates the multi-scale contextual information to improve multi-scale feature modeling. SegNet builds on the UNet by up-sampling at the decoder stage using the encoder’s max-pooling indices, thereby recovering spatial details more accurately. Attention-UNet adds an attention mechanism to the UNet’s structure, improving segmentation by allowing the network to focus on the important feature regions adaptively while suppressing background noise. DeepLabv3+ introduces the Atrous Convolution in the encoder to increase the receptive field and capture multi-scale information, with the decoder recovering high-resolution segmentation results. SegFormer [38] is a transformer-based network that leverages self-attention mechanisms to capture long-range dependencies and global context, achieving high accuracy in segmentation tasks with reduced computational complexity. Swin-UNet [39] utilizes a hierarchical transformer structure to capture multi-scale features, combining the advantages of both convolutional and transformer-based models, making it effective for semantic segmentation with high-resolution outputs.

Semi-supervised semantic segmentation methods include AugSeg, CorrMatch, UniMatch, FixMatch, and our DM_CorrMatch. AugSeg improves the model’s generalization ability by employing data augmentation and consistency regularization on unlabeled data. By maintaining prediction consistency across different augmented views, it maximizes the use of unlabeled data. CorrMatch enhances semi-supervised learning through pseudo-label generation and alignment, progressively improving the prediction quality of unlabeled data and boosting overall segmentation performance. FixMatch employs consistency regularization by weakly and strongly augmenting unlabeled data, maintaining prediction consistency between both views, thereby facilitating effective utilization of unlabeled data and significantly enhancing semi-supervised learning. UniMatch extends FixMatch by introducing a unified matching strategy that aligns the feature distributions across data sources, thereby leveraging information from multiple data sources more effectively and improving model robustness and accuracy.

All of these methods are applied to the RFSD dataset in this study. For the fully supervised segmentation model, a dataset ratio of 8:1:1 was used for training, validation, and testing, while for the semi-supervised approach, only 30 labeled samples and 900 unlabeled samples were used. To ensure fairness in the experiment, all fully supervised segmentation networks were also tested using the same number of labeled samples as the semi-supervised approach (30 labeled samples). As shown in Table 5, significant differences exist between traditional and deep learning methods, where traditional methods are outperformed by deep learning methods in terms of Precision, Recall, IoU and F1 Score, Accuracy. Traditional techniques such as the Otsu method and HSV color segmentation, offer advantages in terms of computational complexity. However, they are significantly constrained in performance when dealing with complex segmentation tasks. This result also demonstrates the powerful feature extraction capability of deep learning, a data-driven approach, and its advantages in handling complex tasks.

Fully-supervised deep learning models include UNet, PSPNet, SegNet, Attention-UNet, DeepLabv3+, SegFormer, and Swin-Unet. Table 5 shows that when the fully supervised networks are trained with only 30 labeled samples, the models are undertrained compared to when 576 labeled samples are used, resulting in lower performance. In contrast, for the fully trained models, except for Unet, all six models reached an IoU above 0.81. This is because Unet is relatively simple with fewer parameters, thus it has faster training and inference speeds. SegFormer and Swin-Unet show significantly higher IoU values compared to the other fully supervised networks, with accuracies of 0.875 and 0.876, respectively, outperforming the lowest-ranking Unet by 8%. However, this comes with relatively high computational complexity.

The five semi-supervised methods, all using only 30 labeled data samples, can achieve IoU comparable to fully supervised methods. Among them, the method proposed in this paper achieved a segmentation accuracy IoU that is even 1.1% higher than that of fully supervised methods, reaching 0.886. The above results demonstrate that the effective use of unlabeled data can indeed enhance the segmentation performance of the task. However, this comes with the cost of increased network overhead due to the update strategies for unlabeled data. In this paper, the network, due to the addition of a diffusion model and a Mamba structure, has reached 84.54 in FLOPs and 76.78 in model parameters.

During the 100-epoch training process, the models exhibited distinct differences in Precision, Recall, F1 Score, Accuracy, IoU, and Loss performance. As illustrated in Fig. 8, DM_CorrMatch ultimately achieved the highest final Precision, Recall, IoU and F1 Score, Accuracy values, demonstrating superior segmentation accuracy. However, in the early stages of training, its improvement in these metrics was slower than certain models, such as DeepLabV3+ and AugSeg, which showed faster initial growth. Nevertheless, DM_CorrMatch surpassed these models as training progressed, stabilizing around epoch 20 and maintaining the best final performance.

Interestingly, for Loss, SegNet demonstrated the fastest reduction during the initial epochs, reflecting its rapid optimization process in the early stages. However, its final Loss value remained higher compared to models like DM_CorrMatch and DeepLabV3+, which showed lower and more stable Loss values as training concluded. These results emphasize the superior optimization and stability of DM_CorrMatch despite its slower initial Loss reduction.

To comprehensively assess the robustness of the model, this paper provides visual predictions for different growth stages of canola flowers, including the early, mid, full, and late flowering stages. As illustrated in Fig. 9, we first present the images and corresponding labels for the four flowering stages of rapeseed. visual Subsequently, twelve different deep learning methods were employed to predict segmentation results for the images at various stages. To provide a more intuitive reflection of the discrepancies between the segmentation results and the labels, we compared the segmentation outcomes with the ground truth labels. In this comparison, Over Segmentation refers to instances of excessive prediction, Exact Segmentation denotes accurate predictions, and Under Segmentation indicates instances of insufficient prediction. The visualization results indicate that the flowering stage, characterized by abundant and plump inflorescences, yields the best segmentation outcomes. In contrast, the early and middle flowering stages of rapeseed, with yellowing buds, and the late flowering stage, with pods obscuring the view, both affect the model’s segmentation accuracy, leading to instances of over-segmentation and under-segmentation. As seen in the visual outcomes, it is evident that our DM_CorrMatch model performed exceptionally well in every stage. Consistent with the evaluation results in Table 5.

Fig. 10

Application. a Segmentation results and coverage values for 4 blocks of cells. b Performance Metrics for UAV Image Segmentation at Different Flight Heights. c The rapeseed flower coverage and corresponding flower count during the mid-bloom and full bloom stages in Plot 1 and Plot 3

Discussion

Monitoring changes in the flower coverage

Monitoring changes in the coverage of canola flowers is crucial for breeding. By determining coverage changes in canola fields, the growth and wilting of canola flowers can be clearly observed. When the segmented image of canola flowers is acquired, the coverage value of the canola flowers can be determined by calculating the percentage of flower pixels, as shown in Eq. 12.

$$\begin{aligned} \text {Flower coverage} = \frac{\text {Number of flower pixels}}{\text {Total number of plot pixels}} \end{aligned}$$

(12)

This enables a clearer understanding of the growth patterns of different canola varieties, as illustrated in Fig. 10a. In addition to monitoring the flowering coverage of different materials at the same time, 44 plots from the 2022 field images were analyzed, covering oilseed rapeseed flower data from February 14 th to April 1 st over 12 distinct periods, encompassing the full flowering cycle of most varieties of oilseed rapeseed. Rapeseed flower coverage values were measured to map the changes in coverage of the same plot at different times. Figure 10b illustrates that the X-axis represents different times during the flowering period collected in 2022, while the Y-axis denotes the flower coverage value. The variation in the number of inflorescences during flowering in different plots of rapeseed was depicted using dotted lines of varying colors. The figure reveals significant variation in flowering periods and growth conditions among different varieties. Some rapeseed varieties exhibited vigorous growth as early as February 14 but also withered sooner, while others bloomed and withered later. Most canola varieties reach peak bloom between March 4 th and March 18 th. These data are important for assessing the growth status of oilseed rapeseed and optimizing cultivation strategies.

To explore the differences among these varieties at a deeper level, this paper employed RapeNet+ [40] to analyze the data showing minimal differences in coverage. Figure 10c illustrates the mid-flowering and full-flowering periods for plot No. 1 and No. 3, respectively. During the mid-flowering period, plot 3 showed slightly higher coverage than plot 1, with a bud count of 290, surpassing the 282 buds recorded in plot 1. However, during the full flowering period, although plot 3 had lower coverage than plot 1, it still had a significantly high bud count. The resulting data provide breeding experts with essential quantitative assessments, facilitating the evaluation of the performance of various rapeseed varieties across distinct growth stages.

Fig. 11

Schematic diagram of UAV flight height and image resolution, flight height 10 m, 15 m, 20 m, 25 m, 30 m, 35 m images

Relationship between UAV flight height and coverage measurement accuracy

In this section, we investigate the impact of UAV-acquired images at different flight altitudes on semi-supervised semantic segmentation, validate the robustness of DM_CorrMatch, and discuss the optimal balance between flight altitude and model accuracy. As flight altitude increases, shorter acquisition times facilitate the coverage of larger areas and reduce the impact of illumination variations caused by time differences on image quality, despite a decrease in resolution. However, the small and dense nature of rapeseed flower clusters means that excessively high flight altitudes adversely affect segmentation accuracy. Therefore, an appropriate flight altitude can enhance data acquisition efficiency while maintaining high segmentation accuracy. This study aims to identify the optimal flight altitude and resolution configuration to balance acquisition efficiency and segmentation accuracy, providing practical insights for UAV applications in agricultural settings.

To simulate resolution variations at different flight altitudes, this study employs a diffusion model to generate images at varying resolutions.

The relationship between UAV flight altitude and GSD follows the principle of pinhole imaging, expressed by the following equation:

$$\begin{aligned} GSD = \frac{H \cdot p}{F} \end{aligned}$$

(13)

where GSD (Ground Sampling Distance) represents the actual ground area covered by each pixel, H is the flight altitude, p is the pixel size of the sensor, F is the focal length of the camera. According to this formula 13, flight altitude is directly proportional to GSD. As flight altitude increases, GSD increases, resulting in a reduction in image resolution. Figure 11 illustrates the image resolutions corresponding to different flight altitudes. Then, we use the DM_CorrMatch model to predict images captured by the UAV at various flight altitudes and calculate the corresponding performance metrics, as shown in Table 6. The results align with the aforementioned analysis, demonstrating significant variations in segmentation accuracy, recall, F1 score, and IoU at different flight altitudes. At flight altitudes of 10 ms and 15 ms, the model performs similarly, with precision and recall both around 0.94, and IoU values of 0.886 and 0.885, respectively. The F1 score also remains high, indicating that at lower altitudes, the model effectively captures details of the target area while maintaining high predictive accuracy.

However, when the flight altitude increases to 20 ms, a slight decrease in precision and recall is observed, dropping to 0.938 and 0.939, respectively, while the IoU improves to 0.887. This suggests that at this altitude, the model’s predictive consistency is enhanced, achieving a better balance between image quality and the model’s ability to differentiate target regions. As the flight altitude increases further to 25 ms, 30 ms, and 35 ms, significant declines in precision, recall, IoU, and F1 score are observed, particularly at 35 ms, where the IoU drops sharply to 0.788. This implies that at higher altitudes, the model’s ability to capture fine details diminishes, leading to a reduction in segmentation accuracy. This is likely due to the decrease in image resolution and the loss of detailed information.

To validate these observations statistically, we performed an ANOVA test on the performance metrics across different altitudes. The results indicate that the differences between the altitudes are statistically significant. The F-statistic values for precision, recall, IoU, F1 score, and accuracy are 17.78, 15.25, 18.45, 16.20, and 14.30, respectively, with corresponding p-values of 3.52e$-$08, 5.24e$-$07, 2.11e$-$08, 3.76e$-$07, and 1.85e$-$06. These p-values are all well below the threshold of 0.05, indicating that the observed differences in performance metrics are not due to random chance but rather reflect a true effect of the flight altitude on the model’s performance. This confirms that the model’s accuracy is significantly influenced by the flight height, making the findings robust and meaningful.

In our oilseed rapeseed base, theoretically, a flight altitude of 20 ms is the optimal height for data collection, as the GSD at this altitude is 5.5 mm/pixel, ensuring high accuracy while also reducing data acquisition time. This provides a valuable reference for future data collection.

Table 6 Performance Metrics for UAV Image Segmentation at Different Flight Heights

Conclusion

This paper presents the DM_CorrMatch framework for monitoring rapeseed flower coverage, which addresses the challenges associated with limited labeled data through a semi-supervised approach. The framework integrates an Automatic Update Strategy Of Labeled Data (AUL), which enhances the quality of labeled datasets, and employs a diffusion model for dataset augmentation to effectively increase the sample size. The use of Mamba-DeeplabV3+ network further improves feature extraction by incorporating the Mamba layer into the shallow layers of ResNet101, enhancing both local and global feature capture.

Our experiments show that the diffusion model-generated images provide results comparable to those collected manually, demonstrating the efficacy of this data augmentation strategy. Moreover, the RFSD dataset, introduced in this work, is the first of its kind for rapeseed flower segmentation in the field, contributing a valuable resource for future research in agricultural monitoring.

Nevertheless, this approach presents several challenges. The model’s large number of parameters and substantial computational demands create significant obstacles for its deployment in real-world applications. We recognize the importance of computational efficiency for practical implementation, and in future work, we plan to explore optimization strategies, including lightweight model design, model compression, hardware acceleration, and adaptive computing, to enable real-time applications. Moreover, we aim to extend our approach to other crops, thus broadening the applicability of this method in agricultural research and practice.
